R&D Mini Press
Adept mini rotary tablet presses are engineered to meet the diverse needs of R&D and pilot batch production.
Mini Press for Mono Layer Tablet (ATR):
Silent Features:
- Easy operation
- Robust
- Single layer tablet
- Available with 2 tons pre-compression and 6 tons main compression
Optional Features:
- Rotary Feeder
- SS die plate
- Force measurement
- Auto rejection and Sampling
Technical Specifications :
| MODELS | Station | TYPE OF TOOLING | ROUND TABLET MAX DIA | CAPLET- MAX LENGTH | MAIN COMPRESSION FORCE (TONS) | PRE-COMPRESSION FORCE (TONS) | DEPTH OF FILL (MM) | MOTOR* HP | TABLET+ HOUR OUTPUT PER | DIMENSIONS | WEIGHT | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| @ 10 RPM | @ 30 RPM | |||||||||||
| ATR D-D-8 | 8 | D | 25.0 | 25.0 | 6.0 | 2.0 | 18.0 | 3 | 4,800 | 14,400 | L: 65 cm W: 85 cm H: 120 cm |
Net: 450Kgs Gross: 600Kgs |
| ATR B-B-10 | 10 | B | 18.5 | 19.0 | 6.0 | 2.0 | 18.0 | 3 | 6,000 | 18,000 | ||
| ATR R&D-8 | 4 | D | 25.0 | 25.0 | 6.0 | 2.0 | 18.0 | 3 | 2,400 | 7,200 | ||
| 4 | B | 18.5 | 19.0 | 6.0 | 2.0 | 18.0 | 3 | 2,400 | 7,200 | |||

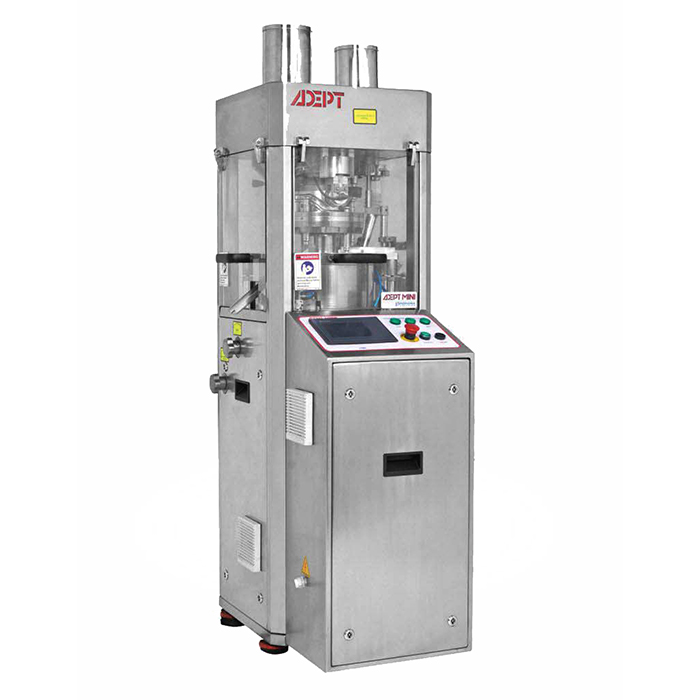

Mini Press for Bi-Layer Tablet (ATR):
Silent Features:
- Easy operation
- Robust
- Suitable single and Bilayer tablets
- Available with 2 tons pre-compression and 6 tons main compression
Optional Features:
- Rotary Feeder
- 7” display
- SS die plate
- Force measurement
- Auto rejection and Sampling
Technical Specifications :
| MODELS | ATR D-D-9 | ATR B-B-11 | ATR R&D |
|---|---|---|---|
| No Of Stations | 9 | 11 | 5D + 5B |
| Type Of Tooling | D | B | D & B |
| Max Round Tablet Size | 25mm | 18.5mm | 25 / 18.5mm |
| Max Caplet Length | 25mm | 19mm | 25 / 19mm |
| RPM | 10 - 36 | 10 - 36 | 10 - 36 |
| Main Pressure | 60 kN | 60 KN | 60 KN |
| Pre Pressure | 20 kN | 20 kN | 20 kN |
| Max Depth Of Fill | 18mm | 18mm | 18mm |
| Second Layer Penetration | 3mm to 8mm | ||
| Main Motor | 3 HP | 3 HP | 3 HP |
| Max Output/Hour | 19440 | 23760 | 10800 |
| Machine Dimensions | 71 cm x 56 cm x 178 cm | ||
| Machine Weight | 550kg | ||

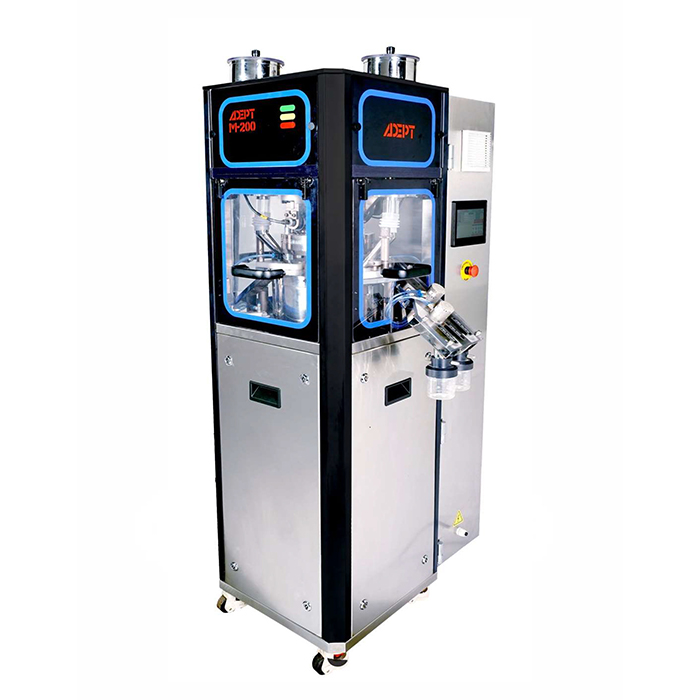

Fully Automated M200:
Silent Features:
- 7” Touch Screen with PLC Control
- Force Measurement System for sensing & recording Main, Pre Compression & Ejection Force of each punch
- AWC – Servo Motorised (Knob-less control for Weight & Thickness)
- Tablet sampling & rejection by Pneumatic Flap System
- 3 Level Supervisory Password Control
- 21 CFR Part 11 compliance
- 1st Layer Auto Sampling System (Pneumatic)
- Dwell time display in real time
- All Reports Generation
Technical Specifications :
| MODELS | M200 D-D-9 | M200 B-B-11 | M200 R&D |
|---|---|---|---|
| No Of Stations | 9 | 11 | 5D + 5B |
| Type Of Tooling | D | B | D & B |
| Max Round Tablet Size | 25mm | 18.5mm | 25 / 18.5mm |
| Max Caplet Length | 25mm | 19mm | 25 / 19mm |
| RPM | 10 - 36 | 10 - 36 | 10 - 36 |
| Main Pressure | 60 kN | 60 KN | 60 KN |
| Pre Pressure | 20 kN | 20 kN | 20 kN |
| Max Depth Of Fill | 18mm | 18mm | 18mm |
| Second Layer Penetration | 3mm to 8mm | ||
| Main Motor | 3 HP | 3 HP | 3 HP |
| Max Output/Hour | 19440 | 23760 | 10800 |
| Machine Dimensions | 71 cm x 56 cm x 178 cm | ||
| Machine Weight | 550kg | ||
