Mega Press
Mega Press
Adept mega tablet presses is a robust machine engineered for higher output and low maintenance.
Mega Rotary Tablet Press (AMR) :
Silent Features:
- Rugged and stable
- Mono and Bi-layer tablets
- Auto lubrication
- 10 tons main and pre compression
- 21CFR part 11 compliant
Optional Features:
- PLC control
- Bilayer provision
- Separate control panel unit
Technical Specifications :
| MODELS | Station | MAX PRESSURE IN TONS | ROUND TABLET MAX DIA | CAPLET- MAX LENGTH | PUNCH | DIE | MOTOR* | TABLET HOUR OUTPUT PER | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TYPE | DIA | HEIGHT | TYPE | DIA | HEIGHT | HP | RPM | @ 10 RPM | @ 40 RPM | |||||
| AMR D-D-45 | 45 | 10.0 | 25.0 | 25.0 | D | 25.35 | 133.6 | D | 38.10 | 23.81 | 15 | 1440 | 54,000 | 2,16,000 |
| AMR B-B-61 | 61 | 6.5 | 18.5 | 19.0 | B | 19.00 | 133.6 | B | 30.16 | 22.22 | 10 | 1440 | 72,000 | 2,88,000 |
| AMR B-BB-75 | 75 | 6.5 | 13.0 | 16.0 | B | 19.00 | 133.6 | BB | 24.00 | 22.22 | 10 | 1440 | 90,000 | 3,60,000 |
| AMR A-A-101 | 101 | 6.5 | 10.0 | NA | B | 10 | 100.0 | A | 17.00 | 20.00 | 10 | 1440 | 1,20,000 | 4,80,000 |

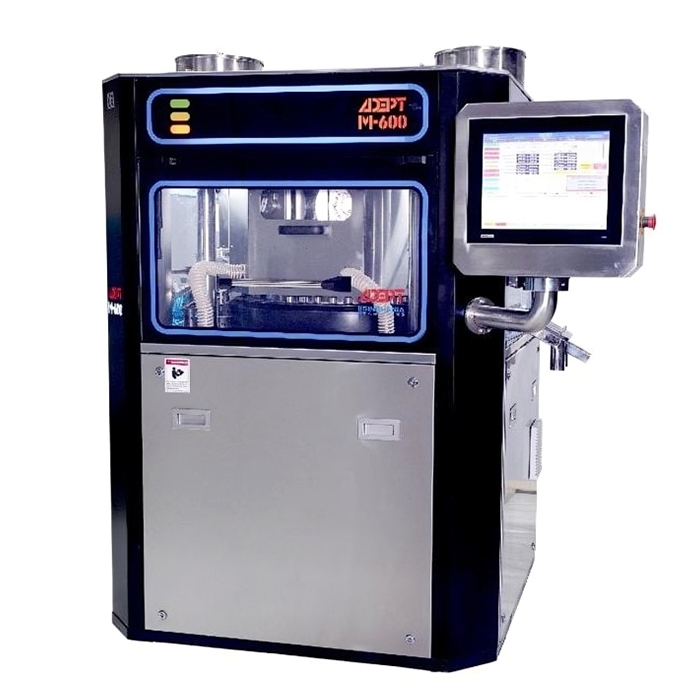

Mega Rotary Tablet Press (M-600) :
Silent Features:
- Fully Automated
- Rugged and stable
- Mono and Bi-layer tablets
- Auto lubrication
- 10 tons main and pre compression
- 21CFR part 11 compliant
- Auto weight control
- Touch Screen control panel
Technical Specifications :
| MODELS | Station | MAX PRESSURE IN TONS | ROUND TABLET MAX DIA | CAPLET- MAX LENGTH | PUNCH | DIE | MOTOR* | TABLET HOUR OUTPUT PER | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TYPE | DIA | HEIGHT | TYPE | DIA | HEIGHT | HP | RPM | @ 10 RPM | @ 40 RPM | |||||
| M600 D-D-45 | 45 | 10.0 | 25.0 | 25.0 | D | 25.35 | 133.6 | D | 38.10 | 23.81 | 10 | 1440 | 54,000 | 2,16,000 |
| M600 B-B-61 | 61 | 6.5 | 18.5 | 19.0 | B | 19.00 | 133.6 | B | 30.16 | 22.22 | 10 | 1440 | 72,000 | 2,92,800 |
| M600 B-BB-75 | 75 | 6.5 | 13.0 | 16.0 | B | 19.00 | 133.6 | BB | 24.00 | 22.22 | 10 | 1440 | 90,000 | 3,60,000 |
| M600 A-A-101 | 101 | 6.5 | 10.0 | NA | B | 10 | 100.0 | A | 17.00 | 20.00 | 10 | 1440 | 1,20,000 | 4,80,000 |
