Double Rotary Press
Double Rotary Press
Adept double rotary tablet presses are extremely sturdy and simple to use.

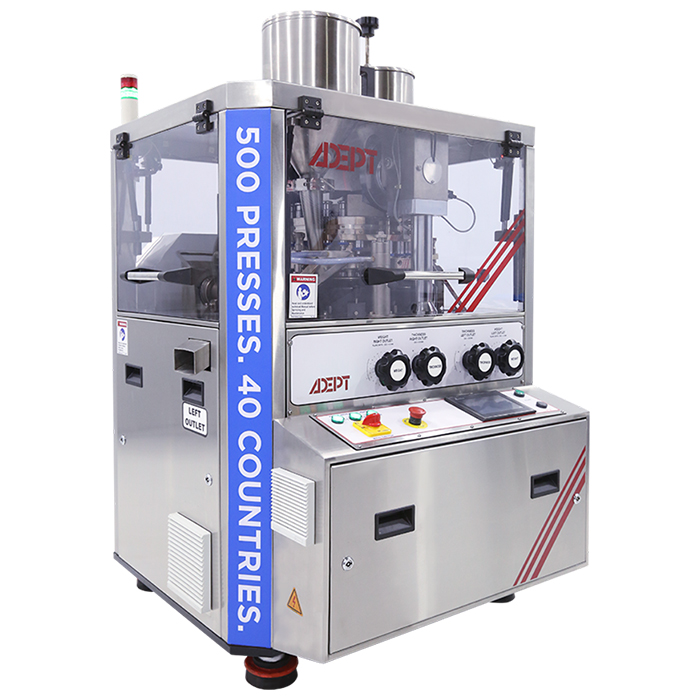

Double Rotary Tablet Press (ADR) :
Silent Features:
- Rugged and stable
- High torque 5 HP motor
- Mono and Bi-layer tablets
- Auto lubrication
- Compression force measurement
- AC drive speed control
Optional Features:
- PLC control with touch screen HMI
- Bilayer provision
- Spray System to lower punch lubrication
Technical Specifications :
| MODELS | Station | MAX PRESSURE IN TONS | ROUND TABLET MAX DIA | CAPLET- MAX LENGTH | PUNCH | DIE | MOTOR* | TABLET HOUR OUTPUT PER | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TYPE | DIA | HEIGHT | TYPE | DIA | HEIGHT | HP | RPM | @ 10 RPM | @ 30 RPM | |||||
| ADR D-D-27 | 27 | 10.0 | 25.0 | 25.0 | D | 25.35 | 133.6 | D | 38.10 | 23.81 | 5 | 1440 | 32,000 | 97,200 |
| ADR B-B-35 | 35 | 6.5 | 18.5 | 19.0 | B | 19.00 | 133.6 | B | 30.16 | 22.22 | 5 | 1440 | 42,000 | 1,26,000 |
| ADR B-BB-45 | 45 | 6.5 | 13.0 | 16.0 | B | 19.00 | 133.6 | BB | 24.00 | 22.22 | 5 | 1440 | 54,000 | 1,62,000 |
| ADR A-A-59 | 59 | 6.5 | 10.0 | NA | B | 10 | 100.0 | A | 17.00 | 20.00 | 5 | 1440 | 70,800 | 2,12,400 |
| ADR R&D-30 | 15 | 10.0 | 25.0 | 25.0 | D | 25.35 | 133.6 | D | 38.10 | 23.81 | 5 | 1440 | 18,000 | 54,000 |
| 15 | 10.0 | 18.5 | 19.0 | B | 19.00 | 133.6 | B | 30.16 | 22.22 | 5 | 1440 | 18,000 | 54,000 | |
